Displays designed for surveillance system (CCTV), rear-view mirror or passenger information system (PIS). Rugged and temperature-durable TFT panels for rolling stock applications. Customization based on specific project requirement.
- Variable mechanical versions (on wall, front panel, VESA 100 mounting,
on glass, on console) - single monitor / double display monitor
- 10 / 100 Mbps Ethernet
- Project-based of customization of software
- Wide operating temperature range -30 °C to 70 °C
- UIC 176 version available
- TSI PRM compliant
- Application software for surveillance systems or PIS
- EN 50155 compliant
| TFT panels common parameters | |
|---|---|
| Display | TFT LED LCD |
| Back-lit | LED |
| Ethernet interface | 1 × (10 / 100 Mbps), M12, D-coded |
| Power supply | 24 V DC |
| Galvanic isolation | Yes |
| Operating temperature range | -30 °C to 70 °C |
| Mounting | open frame / on the ceiling / on the wall |
| Application software | Project customized |
| Operation system | Linux |
| Standards: EN 50155, EN 50121-3-2, EN 45545-2 | |
TFT Panels Common Parameters
Display:
TFT LED LCD
Back-lit:
LED
Ethernet interface:
1 × (10 / 100 Mbps), M12, D-coded
Power supply:
24 V DC
Galvanic isolation:
Yes
Operating temperature range:
-30 °C to 70 °C
Mounting:
open frame / on the ceiling / on the wall
Application software:
Project customized
Operation system:
Linux
Standards
Standards:
EN 50155, EN 50121-3-2, EN 45545-2
TFT INFORMATION PANEL TYPES (ETHERNET, M12 D-CODE)
| Type | Size | Displays | Resolution | Mounting | Dimensions (mm) | Protection rate | UIC 176 |
|---|---|---|---|---|---|---|---|
| AIPQxx215Wxxx | 21,5" | 1 × | 1920×1080 | open frame on the ceiling on the wall |
(554 × 360 × 251) | IP00 IP30 |
2.4 |
| AIPDxx215Wxxx | 21,5" | 2 × | 1920×1080 | (554 × 360 × 326) | 2.4 | ||
| AIPQxx185Wxxx | 18,5" | 1 × | 1366×768 | (518 × 314 × 151) | 2.4 | ||
| AIPDxx185Wxxx | 18,5" | 2 × | 1366×768 | (554 × 360 × 251) | 2.4 | ||
| AIPB1A0L103K0NA | 10,4" | 1 × | 1024×768 | in the panel | (345 × 217 × 116) | IP65 / IP20 | 2.4 |

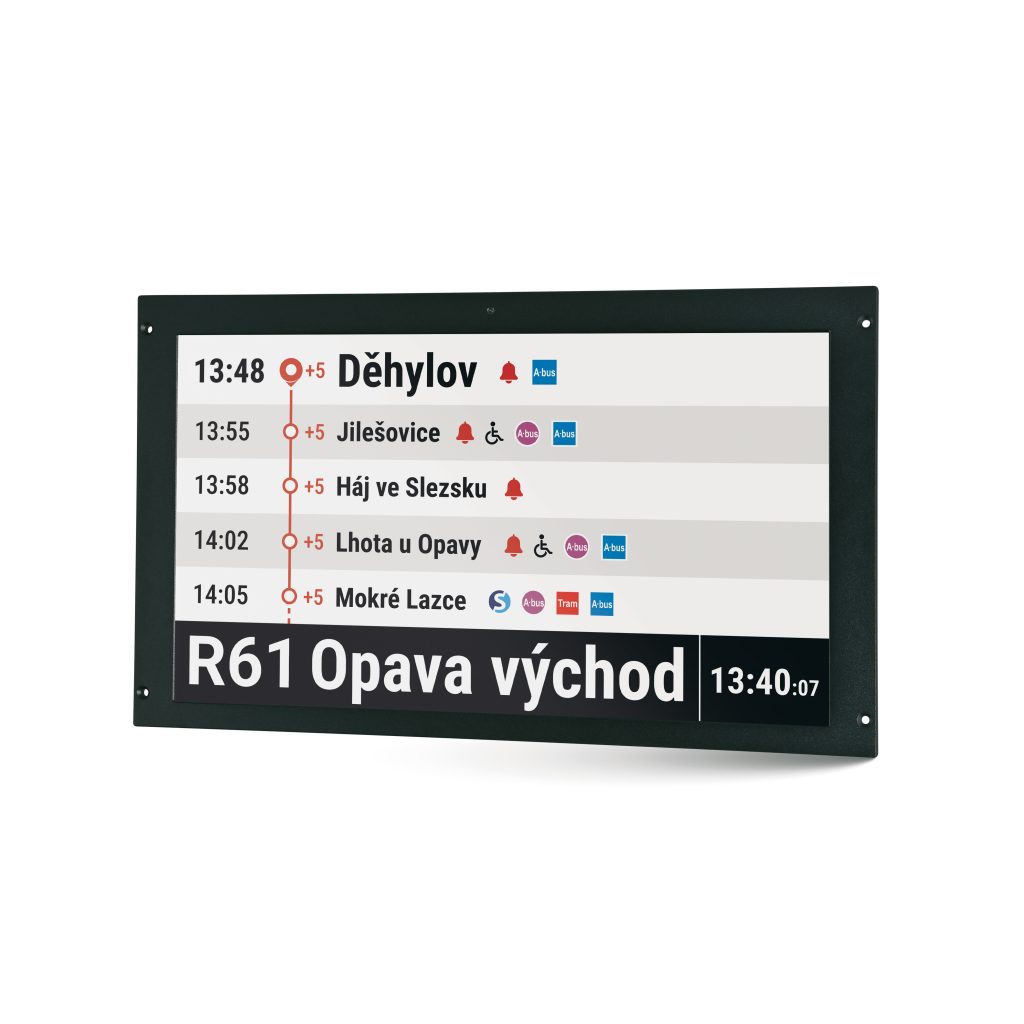

AIPQxx215Wxxx
Size:
21,5"
Displays:
1 ×
Resolution:
1920×1080
Mounting:
open frame / on the ceiling / on the wall
Dimensions (mm):
(554 × 360 × 251)
Protection rate:
IP00 / IP30
UIC 176:
2.4
AIPDxx215Wxxx
Size:
21,5"
Displays:
2 ×
Resolution:
1920×1080
Mounting:
open frame / on the ceiling / on the wall
Dimensions (mm):
(554 × 360 × 326)
Protection rate:
IP00 / IP30
UIC 176:
2.4
AIPQxx185Wxxx
Size:
18,5"
Displays:
1 ×
Resolution:
1366×768
Mounting:
open frame / on the ceiling / on the wall
Dimensions (mm):
(518 × 314 × 151)
Protection rate:
IP00 / IP30
UIC 176:
2.4
AIPDxx185Wxxx
Size:
18,5"
Displays:
2 ×
Resolution:
1366×768
Mounting:
open frame / on the ceiling / on the wall
Dimensions (mm):
(554 × 360 × 251)
Protection rate:
IP00 / IP30
UIC 176:
2.4
AIPB1A0L103K0NA
Size:
10,4"
Displays:
1 ×
Resolution:
1024×768
Mounting:
in the panel
Dimensions (mm):
(345 × 217 × 116)
Protection rate:
IP65 / IP20
UIC 176:
2.4
