The MVB converters mediate conversion of various communication lines to an MVB line. The converters can be used to units connecting with Ethernet or CAN communication lines to the MVB line. The conversion processing of communication is provided in both directions.
- WTB network compact analyser
- WTB interface with doubled line
- MVB network compact analyser
- MVB interface of EMD/ESD type with redundant lines
- Ethernet 100 Mbps
- Processing and analysis of data on PC
- Wide operating temperature range -40 °C to 70 °C
- Power supply voltage 24 V DC
MVB GATEWAYS
| RB-RTM/xBxxx (MVB / Ethernet) | RB-RTM/xAxxx (MVB / CAN) | |
|---|---|---|
| MVB interface | 1 × (redundant line) | |
| MVB class | Class 1 / Class 2 / Class 4 without MD / Class 4 | |
| Interface type | EMD / ESD (depending to module outer wiring) / OGF | |
| Connectors | 2 × D-Sub DE-9 (concatenation) | |
| Communication rate | 1.5 Mbps ±0.01 % | |
| Interface | 1 × Ethernet | 1 × CAN |
| Communication rate | 10 / 100 Mbps | Max. 1 Mbps |
| Galvanic isolation | Yes | Yes |
| Connector | M12, D-coded | 2 × D-Sub DE-9 (concatenation) |
| Power supply | 16.8 V to 33.6 V DC | |
| Protection rate | IP20 | |
| Mounting | 2 × ø 6 mm hole | |
| Operating temperature | -40 °C to 70 °C | |
| Weight | 0.9 kg | 0.9 kg |
| Dimensions (w × h × d) | (33 × 228 × 113) mm | (55 × 228 × 85) mm |
| Application software | Project customized | |
| Standards | EN 50155, EN 50121-3-2, EN 61373, EN 45545-2, IEC 61375-3-1 | |
RB-RTM/xBxxx (MVB / Ethernet)
MVB interface:
1 × (redundant line)
MVB class:
Class 1 / Class 2 / Class 4 without MD / Class 4
Interface type:
EMD / ESD (depending to module outer wiring) / OGF
Connectors MVB:
2 × D-Sub DE-9 (concatenation)
Communication rate MVB:
1.5 Mbps ±0.01 %
Interface:
1 × Ethernet
Communication rate:
10 / 100 Mbps
Galvanic isolation:
Yes
Connector:
M12, D-coded
Power supply:
16.8 V to 33.6 V DC
Protection rate:
IP20
Mounting:
2 × ø 6 mm hole
Operating temperature:
-40 °C to 70 °C
Weight:
0.9 kg
Dimensions (w × h × d):
(33 × 228 × 113) mm
Application software:
Project customized
RB-RTM/xAxxx (MVB / CAN)
MVB interface:
1 × (redundant line)
MVB class:
Class 1 / Class 2 / Class 4 without MD / Class 4
Interface type:
EMD / ESD (depending to module outer wiring) / OGF
Connectors MVB:
2 × D-Sub DE-9 (concatenation)
Communication rate MVB:
1.5 Mbps ±0.01 %
Interface:
1 × CAN
Communication rate:
Max. 1 Mbps
Galvanic isolation:
Yes
Connector:
2 × D-Sub DE-9 (concatenation)
Power supply:
16.8 V to 33.6 V DC
Protection rate:
IP20
Mounting:
2 × ø 6 mm hole
Operating temperature:
-40 °C to 70 °C
Weight:
0.9 kg
Dimensions (w × h × d):
(55 × 228 × 85) mm
Application software:
Project customized
Standards
Standards:
EN 50155, EN 50121-3-2, EN 61373, EN 45545-2, IEC 61375-3-1
MVB MODULE
| MVB class | Class 1 / Class 2 / Class 4 without MD / Class 4 |
| MVB interface | 1 × (2 redundant lines) |
| Interface type | EMD / ESD (depending to module outer wiring) / OGF |
| Interface for host CPU | 1× (parallel / UART / LPC) |
| Communication rate | Depends on chosen interface type |
| Logical levels | 3.3 V LVTTL |
| Dimensions (w × h × d) | (50.0 × 48.0 × 12.0) mm |
| Standards | EN 50155, EN 50121-3-2, EN 61373, EN 60068-2-1, EN 60068-2-2, IEC 61375-3-1 |
MVB class:
Class 1 / Class 2 / Class 4 without MD / Class 4
MVB interface:
1 × (2 redundant lines)
Interface type:
EMD / ESD (depending to module outer wiring) / OGF
Interface for host CPU:
1× (parallel / UART / LPC)
Communication rate:
Depends on chosen interface type
Logical levels:
3.3 V LVTTL
Dimensions (w × h × d):
(50.0 × 48.0 × 12.0) mm
Standards
Standards:
EN 50155, EN 50121-3-2, EN 61373, EN 60068-2-1, EN 60068-2-2, IEC 61375-3-1

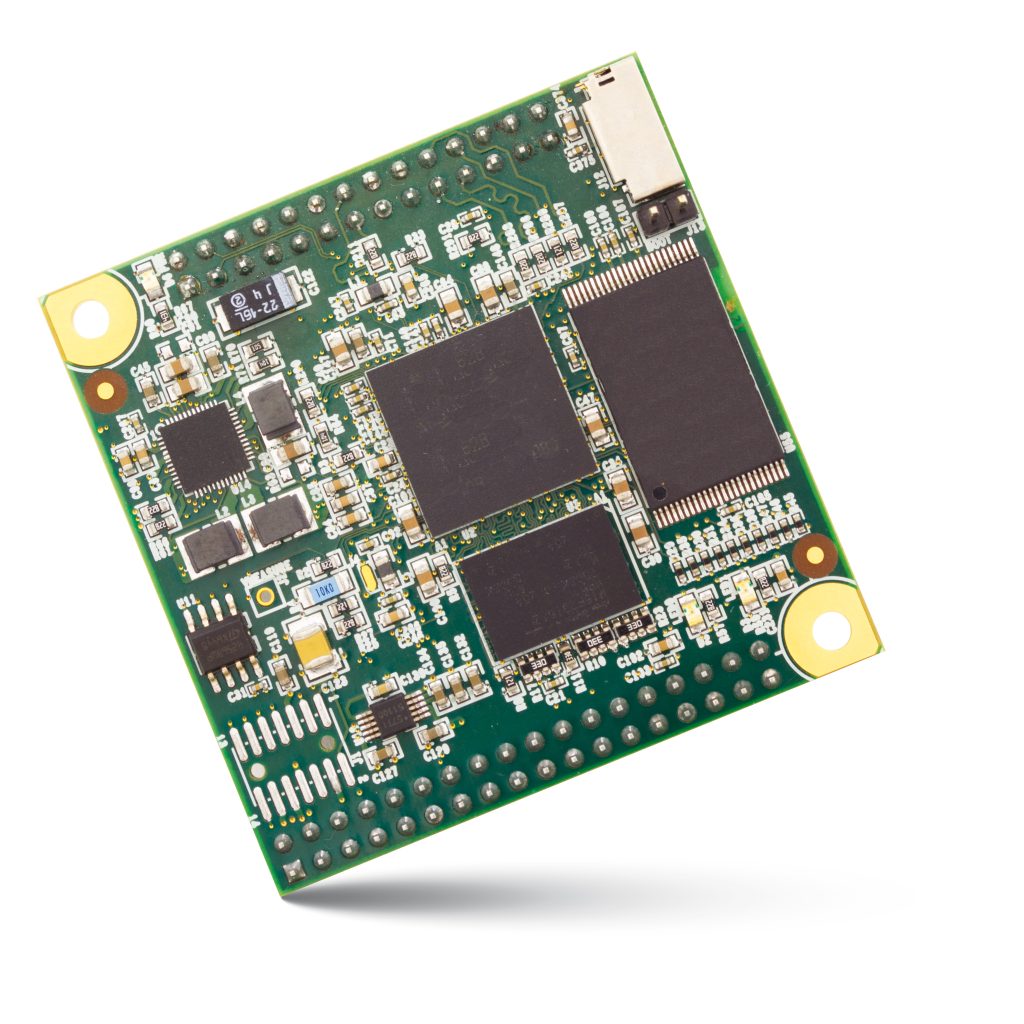

MODULE WITH TRDP PROTOCOL
| Protocol | TRDP TCNOpen 1.3.3.0 |
| Interfaces | 2× interface Ethernet, external PHY, RMII |
| Host interface | UART / CAN / SPI / Eth |
| Power supply | 5.0 V DC |
| Dimension | (55 × 55 × 19) mm |
| Operating temperature range | -40 °C to 70 °C |
| Mounting | 2 × ø 3.2 mm hole |
| Standards | EN 50155, EN 50121-3-2, EN 61373, EN 60068-2-1, EN 60068-2-2 |
Protocol:
TRDP TCNOpen 1.3.3.0
Interfaces:
2× interface Ethernet, external PHY, RMII
Host interface:
UART / CAN / SPI / Eth
Power supply:
5.0 V DC
Dimension:
(55 × 55 × 19) mm
Operating temperature range:
-40 °C to 70 °C
Mounting:
2 × ø 3.2 mm hole
Standards
Standards:
EN 50155, EN 50121-3-2, EN 61373, EN 60068-2-1, EN 60068-2-2
