Ethernet network has been successfully used and proven as inexpensive and reliable means of real-time on-board rolling stock communication. Ethernet elements of train networks meet the demanding requirements for resistance to extreme temperatures, vibration and against electromagnetic interference.
- 6 and 12 ports Ethernet switches
- 10 / 100 Mbps / 1 Gbps
- Robust vibration-proof
- PoE version available
- Connections with M12 or RJ45
- Wide operating temperature range -40 °C to 70 °C
- EN 50155 compliant

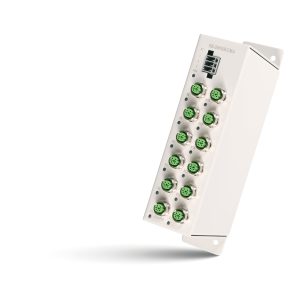

ETHERNET SWITCHES WITH M12
| RB-SW006/CM1 | RB-SW008/CM1 | RB-SW024/CM1 | RB-SW060/CM1 | |
|---|---|---|---|---|
| Number of ports | 6 | 12 | 2 + 4 | 6 |
| Ports with PoE | - | |||
| 10 / 100 / 1000 Mbps | - | - | 2 | 6 |
| 10 / 100 Mbps | 6 | 12 | 4 | - |
| Connectors | 6 × M12, D-coded | 12 × M12, D-coded | 2 × M12, X-coded 4 × M12, D-coded |
6 × M12, X-coded |
| Power supply | 16,8 V to 33,6 V DC | |||
| Power consumption | Max. 0,3 A at 24 V DC | Max. 0,5 A at 24 V DC | Max. 0,3 A at 24 V DC | Max. 0,3 A at 24 V DC |
| Cover protection rate | IP20 | |||
| Operating temperature range | -40 °C to 70 °C | |||
| Mounting | 2 × ø 5,5 mm hole | 4 × ø 5,5 mm hole | 2 × ø 5,5 mm hole | 2 × ø 5,5 mm hole |
| Weight | 0,89 kg | 1,90 kg | 0,98 kg | 0,89 kg |
| Dimensions (w × h × d) | (33 × 233 × 116) mm | (55 × 233 × 116) mm | (33 × 233 × 116) mm | (33 × 233 × 116) mm |
| Standards | EN 50155, EN 50121-3-2, EN 45545-2 | |||
RB-SW006/CM1
Number of ports:
6
Ports with PoE:
-
10 / 100 / 1000 Mbps:
-
10 / 100 Mbps:
6
Connectors:
6 × M12, D-coded
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,3 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
2 × ø 5,5 mm hole
Weight:
0,89 kg
Dimensions (w × h × d):
(33 × 233 × 116) mm
RB-SW008/CM1
Number of ports:
12
Ports with PoE:
-
10 / 100 / 1000 Mbps:
-
10 / 100 Mbps:
12
Connectors:
12 × M12, D-coded
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,5 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
4 × ø 5,5 mm hole
Weight:
1,90 kg
Dimensions (w × h × d):
(55 × 233 × 116) mm
RB-SW024/CM1
Number of ports:
2 + 4
Ports with PoE:
-
10 / 100 / 1000 Mbps:
2
10 / 100 Mbps:
4
Connectors:
2 × M12, X-coded
4 × M12, D-coded
4 × M12, D-coded
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,3 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
2 × ø 5,5 mm hole
Weight:
0,98 kg
Dimensions (w × h × d):
(33 × 233 × 116) mm
RB-SW060/CM1
Number of ports:
6
Ports with PoE:
-
10 / 100 / 1000 Mbps:
6
10 / 100 Mbps:
-
Connectors:
6 × M12, X-coded
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,3 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
2 × ø 5,5 mm hole
Weight:
0,89 kg
Dimensions (w × h × d):
(33 × 233 × 116) mm
Standards
Standards:
EN 50155, EN 50121-3-2, EN 45545-2
ETHERNET SWITCHES WITH RJ45
| RB-SW060/CR1 | RB-SW080/CR1 | |
|---|---|---|
| Number of ports | 6 | 12 |
| Ports with PoE | - | |
| 10 / 100 / 1000 Mbps | 6 | 12 |
| Connectors | RJ45 | |
| Power supply | 16,8 V to 33,6 V DC | |
| Power consumption | Max. 0,3 A at 24 V DC | Max. 0,5 A at 24 V DC |
| Cover protection rate | IP20 | |
| Operating temperature range | -40 °C to 70 °C | |
| Mounting | 2 × ø 5,5 mm hole | 4 × ø 5,5 mm hole |
| Weight | 0,98 kg | 1,20 kg |
| Dimensions (w × h × d) | (33 × 233 × 116) mm | (55 × 233 × 103) mm |
| Standards | EN 50155, EN 50121-3-2, EN 45545-2 | |
RB-SW060/CR1
Number of ports:
6
Ports with PoE:
-
10 / 100 / 1000 Mbps:
6
Connectors:
RJ45
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,3 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
2 × ø 5,5 mm hole
Weight:
0,98 kg
Dimensions (w × h × d):
(33 × 233 × 116) mm
RB-SW080/CR1
Number of ports:
12
Ports with PoE:
-
10 / 100 / 1000 Mbps:
12
Connectors:
RJ45
Power supply:
16,8 V to 33,6 V DC
Power consumption:
Max. 0,5 A at 24 V DC
Cover protection rate:
IP20
Operating temperature range:
-40 °C to 70 °C
Mounting:
4 × ø 5,5 mm hole
Weight:
1,20 kg
Dimensions (w × h × d):
(55 × 233 × 103) mm
Standards
Standards:
EN 50155, EN 50121-3-2, EN 45545-2
