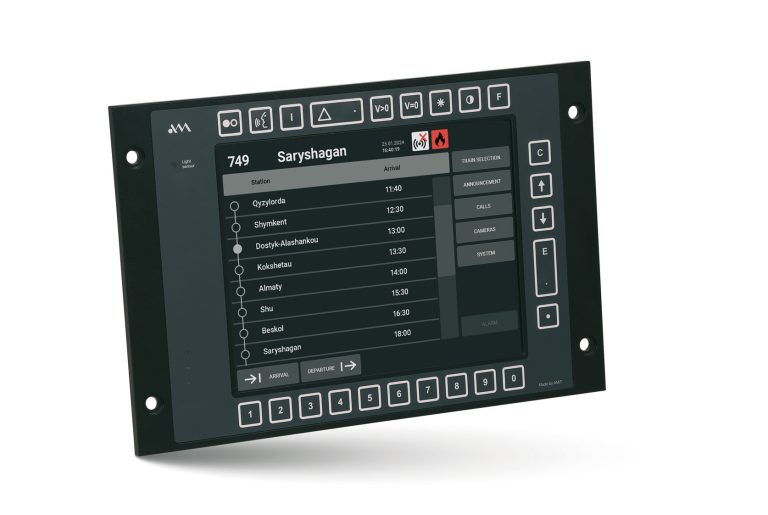

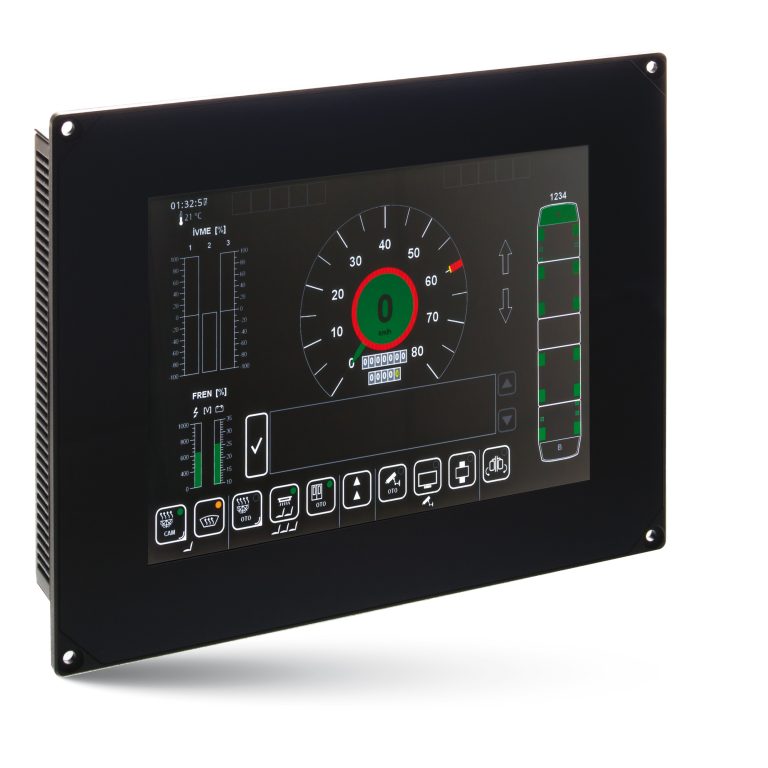

Rugged and temperature-durable on-board computers for rolling stock applications. Used as HMI units for driver’s desk, control of passenger information system, surveillance system control/display unit or diagnostics and communication units.
- Versions with TFT 7” , 10,4” , 12,1” , 15,6“ and resistive / capacitive touch screen
- Up to 32 customizable keys with backlight
- Intel or ARM version
- No moving parts (fan or HDD)
- Operation system Linux or Windows
- Waterproof variant
- Wide operating temperature range -40 °C to 70 °C
- Wide range of power supply voltages


Available models
AW3xxx | APTXAxxx | AIPQM1070 | |
---|---|---|---|
Processor | Intel ATOM x6414RE Quad Core, 4× 1.5GHz, 4GB RAM, 32GB eMMC FLASH |
ARM Cortex A-53, Quad Core, 4× 1.6 GHz, 2 GB LPDDR4, 4 GB eMMC |
ARM A8, 800MHz, 256MB RAM, 1GB NoFlash |
FLASH | None / CFast slot / mSATA | None / CFast slot / mSATA | |
Operation system | None / Linux / Windows | None / Linux / Windows | |
Display | TFT LCD 10.4", 12.1", 15.6" | TFT LCD 7" | |
Keyboard | None / 32 keys, backlight, UIC612-01 / 26 keys, backlight, Customized print | None | |
Touch screen | None / Resistive / PCT | PCT | |
USB | 2 × USB 2.0 type A / 1 × USB 2.0 M12, 5-pin, A-code | 2 × USB A M12, 5-pin, A-code | |
Audio | None / Stereo input / Stereo output | None | |
Ethernet interface | 1 / 2 × Ethernet 10 / 100 Mbps (M12, D-coded) | 1 × Ethernet 10 / 100 Mbps (M12) | |
RS232 | None / 1 × | None | |
RS485 / RS422 | None / 1 × / 2 × | None | |
CAN | None / 1 × / 2 × | None | |
MVB | None / 1 × | None | |
Wireless | Wi-Fi - None / 1 × 802.11a/b/g/n/ac (2.4, 5 GHz) GPS - None / 1 × GPS GLONASS GSM - None / 1 × 2G / 3G / 4G (LTE) |
None | |
Power supply | 24 V / 36 V / 72V / 110 V (-30 % to +25 %) | 24 V (-30 % to +25 %) | |
Protection front panel | IP65 | IP65 | |
Protection back panel | IP20 / IP54 | IP20 / IP50 | |
Operating temperature range | -30 °C to 70 °C / -40 °C to 70 °C | -30 °C to 70 °C | |
Mounting | AMIT / UIC612-01 / Customized | AMIT | |
Weight | Typ. 3.60 kg | Typ. 1.20 kg |
Standards | EN 50155, EN 50121-3-2, EN 45545-2 |
---|
AW3xxx
Processor:
Intel ATOM x6414RE Quad Core, 4× 1.5GHz, 4GB RAM, 32GB eMMC FLASH
FLASH:
None / CFast slot / mSATA
Operation system:
None / Linux / Windows
Display:
TFT LCD 10.4", 12.1", 15.6"
Keyboard:
None / 32 keys, backlight, UIC612-01 / 26 keys, backlight, Customized print
Touch screen:
None / Resistive / PCT
USB:
2 × USB 2.0 type A / 1 × USB 2.0 M12, 5-pin, A-code
Audio:
None / Stereo input / Stereo output
Ethernet interface:
1 / 2 × Ethernet 10 / 100 Mbps (M12, D-coded)
Wireless:
Wi-Fi - None / 1 × 802.11a/b/g/n/ac (2.4, 5 GHz) GPS - None / 1 × GPS GLONASS GSM - None / 1 × 2G / 3G / 4G (LTE)
Power supply:
24 V / 36 V / 72V / 110 V (-30 % to +25 %)
Protection front panel:
IP65
Protection back panel:
IP20 / IP54
Operating temperature range:
-30 °C to 70 °C / -40 °C to 70 °C
Mounting:
AMIT / UIC612-01 / Customized
Weight:
Typ. 3.60 kg
APTXAxxx
Processor:
ARM Cortex A-53, Quad Core, 4× 1.6 GHz, 2 GB LPDDR4, 4 GB eMMC
FLASH:
None / CFast slot / mSATA
Operation system:
None / Linux / Windows
Display:
TFT LCD 10.4", 12.1", 15.6"
Keyboard:
None / 32 keys, backlight, UIC612-01 / 26 keys, backlight, Customized print
Touch screen:
None / Resistive / PCT
USB:
2 × USB 2.0 type A / 1 × USB 2.0 M12, 5-pin, A-code
Audio:
None / Stereo input / Stereo output
Ethernet interface:
1 / 2 × Ethernet 10 / 100 Mbps (M12, D-coded)
Wireless:
Wi-Fi - None / 1 × 802.11a/b/g/n/ac (2.4, 5 GHz) GPS - None / 1 × GPS GLONASS GSM - None / 1 × 2G / 3G / 4G (LTE)
Power supply:
24 V / 36 V / 72V / 110 V (-30 % to +25 %)
Protection front panel:
IP65
Protection back panel:
IP20 / IP54
Operating temperature range:
-30 °C to 70 °C / -40 °C to 70 °C
Mounting:
AMIT / UIC612-01 / Customized
Weight:
Typ. 3.60 kg
AIPQM1070
Processor:
ARM A8, 800MHz, 256MB RAM, 1GB NoFlash
FLASH:
None / CFast slot / mSATA
Operation system:
None / Linux / Windows
Display:
TFT LCD 7"
Keyboard:
None
Touch screen:
PCT
USB:
2 × USB A M12, 5-pin, A-code
Audio:
None
Ethernet interface:
1 × Ethernet 10 / 100 Mbps (M12)
Wireless:
None
Power supply:
24 V (-30 % to +25 %)
Protection front panel:
IP65
Protection back panel:
IP20 / IP50
Operating temperature range:
-30 °C to 70 °C
Mounting:
AMIT
Weight:
Typ. 1.20 kg
Standards
Standards:
EN 50155, EN 50121-3-2, EN 45545-2
